Strapi Menus

A plugin for Strapi CMS to customize the structure of menus and menu items.

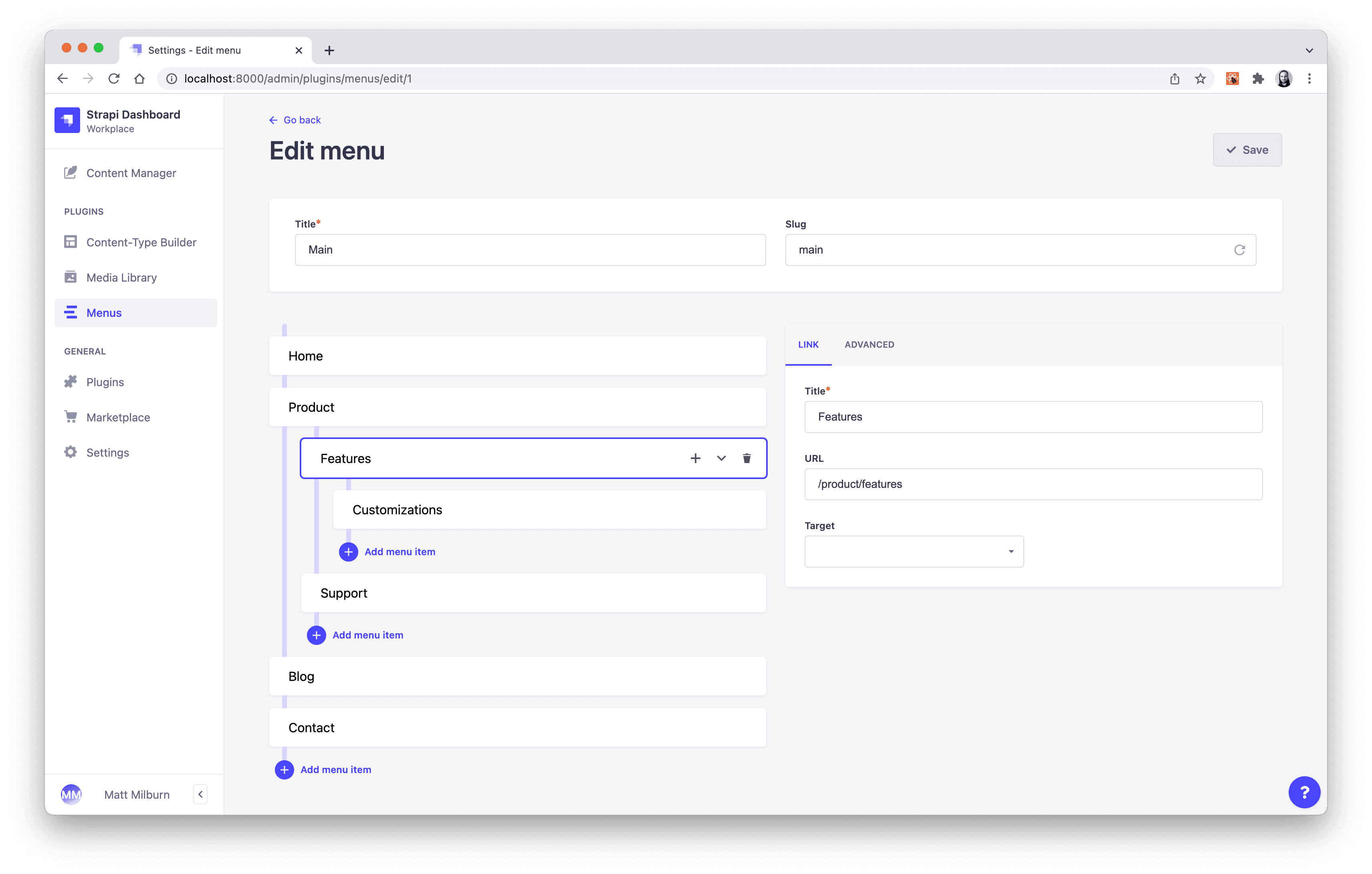

Screenshot for Strapi menus plugin

Get Started

✨ Features

  • Consumable menu data which can be used to render navigation and other menus in a frontend app.
  • Easily manage menus with either a flat or nested structure.
  • Customize the title, url, and link target of menu items.
  • Extend the schema and UI with custom attributes and form layouts for menu items.
  • Custom fields are supported (unless they rely on useCMEditViewDataManager hook).
  • Compatible with the Strapi Transformer plugin for cleaner API responses.

💎 Installation

yarn add strapi-plugin-menus@latest

Don't forget to restart or rebuild your Strapi app when installing a new plugin.

🔧 Configuration

propertytype (default)description
maxDepthnumber (null)Limits how deep menu items can be nested.
layoutsobject ({})Provide form layout configuration for custom attributes.

maxDepth

Limits how deep menus can be nested. By default, there is no limit.

Example

1// ./config/plugins.js`
2'use strict';
3
4module.exports = {
5  menus: {
6    config: {
7      maxDepth: 3,
8    },
9  },
10};

layouts

Provide form layout configuration for custom attributes. The example below is quite simple. See the Extending section for more details on how to use this feature.

Example

1// ./config/plugins.js`
2'use strict';
3
4module.exports = {
5  menus: {
6    config: {
7      layouts: {
8        menuItem: {
9          link: [
10            {
11              input: {
12                label: 'Example Field Label',
13                name: 'example_field',
14                type: 'text',
15              },
16              grid: {
17                col: 6,
18              },
19            },
20          ],
21        },
22      },
23    },
24  },
25};

Enable menus in Documentation plugin

The schema and API endpoint documentation for menus will only be generated by the Strapi documentation plugin if menus is included in the documentation plugin config, like the example below.

1// ./config/plugins.js`
2'use strict';
3
4module.exports = {
5  documentation: {
6    config: {
7      'x-strapi-config': {
8        plugins: ['menus', 'upload', 'users-permissions'],
9      },
10    },
11  },
12};

The upload and users-permissions values are part of the default config and must be re-declared here unless you want to disable their documentation.

🔩 Extending

This plugin can be extended to add new attributes to the MenuItem schema and include editable fields for those attributes in the UI. Follow along with each section below to become familiar with this process.

1. Extend MenuItem schema attributes

First, create the file ./src/extensions/menus/strapi-server.js. Then copy/paste the code below into that file to get started.

1// ./src/extensions/menus/strapi-server.js`
2'use strict';
3
4module.exports = plugin => {
5  // Get current `MenuItem` attributes.
6  const defaultAttrs = plugin.contentTypes['menu-item'].schema.attributes;
7
8  // Define custom attributes for `MenuItem` the same way they would be defined
9  // on any other schema.
10  const customAttrs = {
11    example_field: {
12      type: 'string',
13    },
14  };
15
16  // Extend the `MenuItem` content type with custom attributes.
17  plugin.contentTypes['menu-item'].schema.attributes = {
18    ...defaultAttrs,
19    ...customAttrs,
20  };
21
22  return plugin;
23};

2. Configure layouts for custom attributes

Next, we need to extend the form layout to include the new attributes we defined on the schema.

In ./config/plugins.js, we will configure the layouts prop to allow our custom attributes to render in the UI. By default, the menu item edit panel has one tab labeled "Link". We can add fields to the "Link" tab by defining layouts.menuItem.link as an array of field config objects.

New tabs in the edit panel are configured with each key in the layouts.menuItem object. The example below will add our custom attribute into the "Link" tab and it will occupy the remaining 6 columns of spacing in that panel.

1// ./config/plugins.js`
2'use strict';
3
4module.exports = {
5  menus: {
6    config: {
7      layouts: {
8        menuItem: { // This is the menu item edit panel.
9          link: [ // This is the "link" tab in the menu item edit panel.
10            {
11              input: {
12                label: 'Example Field Label',
13                name: 'example_field',
14                type: 'text',
15                description: 'Example field description',
16                placeholder: 'Type something...'
17              },
18              grid: {
19                col: 6,
20              },
21            },
22          ],
23        },
24      },
25    },
26  },
27};

Field config and grid layout

Each field config object may contain an input and a grid prop. Neither are required, but at least one should be present.

The input prop requires label, name, and type and will be used with the GenericInputs component from the Strapi helper plugin. Other available props can be found in the example below.

The grid prop values correspond to a 12-column layout and will be passed directly to the GridItem component from the Strapi design system.

1{
2  input: {
3    label: 'Field Label',
4    name: '<field_name>', // Same name as defined in the schema.
5    type: '<field_type>', // Reference "Supported field types" section.
6    description: 'Helpful small text under the field input.',
7    placeholder: 'Type something...',
8    required: true,
9    step: 60, // Numbers and time inputs only.
10    options: [ // Select menus only.
11      {
12        label: 'Option Label 1',
13        value: 'option1',
14      },
15      {
16        label: 'Option Label 2',
17        value: 'option2',
18      },
19      {
20        label: 'Option Label 3',
21        value: 'option3',
22      },
23    ],
24  },
25  grid: {
26    col: 6, // Default.
27    s: 12, // Tablet.
28    xs: 12, // Mobile.
29  },
30},

For select input types, the enum values associated with the attribute will be used by default for the options. Or you can provide a custom options array of objects where each object has a label and value prop.

1[
2  {
3    label: 'Option Label',
4    value: 'optionValue',
5  },
6],

For customField input types, you must include the customField prop with the custom field UID.

NOTE: Custom fields will not work in this plugin if they rely on useCMEditViewDataManager hook.

1{
2  input: {
3    label: 'Example Custom Field',
4    name: 'example_field',
5    type: 'customField',
6    customField: 'plugin::custom-fields.example',
7  },
8},

You may also omit the input prop and just add some white space with the grid prop.

1{
2  grid: {
3    col: 6,
4  },
5},

Translations

You may optionally provide a translation config object instead of a string value for label, description, and placeholder props. This also applies to label values in select menu options. However, this does not enable translations by itself.

You must also include the custom field translations in your ./src/admin/app.js file as you see in the example below.

1// ./src/admin/app.js`
2'use strict';
3
4export default {
5  config: {
6    locales: ['en'],
7    translations: {
8      en: {
9        'menus.customFields.field_name.label': 'Translated Label',
10        'menus.customFields.field_name.placeholder': 'Translated Placeholder',
11        'menus.customFields.field_name.description': 'Translated Description',
12      },
13    },
14  },
15  // etc.
16};

Supported field types

The following field types in the table below are supported. Some fields use a different type value for the schema and input type.

FieldSchema TypeInput Type
Booleanbooleanbool
Datedate, time, datetimesame
Emailemailsame
Enumerationenumerationselect
Mediamediasame
Numberinteger, biginteger, decimal, floatnumber
Passwordpasswordsame
Relationrelationsame
Rich Textrichtextwysiwyg
Textstring, textstring, text, textarea

The following field types are NOT supported:

  • Component
  • Dynamic Zone
  • UID
  • JSON

NOTE: By default, rich text fields are not supported unless a custom plugin overrides the core WYSIWYG editor, which is covered in the Strapi guide to creating a new WYSIWYG field in the admin panel.

100% Complete configuration

For reference, here is an example of a 100% complete config with all supported field types. This also demonstrates how tabs and fields can be easily configured.

First, create the file ./src/extensions/menus/strapi-server.js and add the code below.

1// ./src/extensions/menus/strapi-server.js`
2'use strict';
3
4module.exports = plugin => {
5  // Get current `MenuItem` attributes.
6  const defaultAttrs = plugin.contentTypes['menu-item'].schema.attributes;
7
8  // Define custom attributes for `MenuItem` the same way they would be defined
9  // on any other schema.
10  const customAttrs = {
11    example_bool: {
12      type: 'boolean',
13    },
14    example_text: {
15      type: 'string',
16    },
17    example_email: {
18      type: 'email',
19    },
20    example_password: {
21      type: 'password',
22    },
23    example_richtext: {
24      type: 'richtext',
25    },
26    example_date: {
27      type: 'date',
28    },
29    example_time: {
30      type: 'time',
31    },
32    example_datetime: {
33      type: 'datetime',
34    },
35    example_integer: {
36      type: 'integer',
37    },
38    example_biginteger: {
39      type: 'biginteger',
40    },
41    example_decimal: {
42      type: 'decimal',
43    },
44    example_float: {
45      type: 'float',
46    },
47    example_enum: {
48      type: 'enumeration',
49      enum: [
50        'option1',
51        'option2',
52        'option3',
53      ],
54    },
55    example_media: {
56      type: 'media',
57      allowedTypes: ['images'],
58      multiple: false,
59    },
60    example_relation_one: {
61      type: 'relation',
62      relation: 'oneToOne',
63      target: 'api::example-one.example-one',
64    },
65    example_relation_many: {
66      type: 'relation',
67      relation: 'oneToMany',
68      target: 'api::example-many.example-many',
69    },
70  };
71
72  // Extend the `MenuItem` content type with custom attributes.
73  plugin.contentTypes['menu-item'].schema.attributes = {
74    ...defaultAttrs,
75    ...customAttrs,
76  };
77
78  return plugin;
79};

Next, add the plugin config for menus to ./config/plugins.js to include custom form field layouts.

TIP: Despite the simplicity, this is certainly a lot of code. It may be best to move it into a separate file and require() it into your main config file to keep things organized.

1// ./config/plugins.js`
2'use strict';
3
4module.exports = {
5  menus: {
6    config: {
7      maxDepth: 3,
8      layouts: {
9        menuItem: {
10          link: [
11            {
12              input: {
13                label: 'Boolean',
14                name: 'example_bool',
15                type: 'bool',
16              },
17              grid: {
18                col: 6,
19              },
20            },
21          ],
22          text: [
23            {
24              input: {
25                label: 'Text',
26                name: 'example_text',
27                type: 'text',
28              },
29            },
30            {
31              input: {
32                label: 'Email',
33                name: 'example_email',
34                type: 'email',
35              },
36            },
37            {
38              input: {
39                label: 'Password',
40                name: 'example_password',
41                type: 'password',
42              },
43            },
44            {
45              input: {
46                label: 'Rich Text',
47                name: 'example_richtext',
48                type: 'wysiwyg',
49                description: 'This field type is not supported unless a custom plugin overrides the core WYSIWYG editor.',
50              },
51            },
52          ],
53          date: [
54            {
55              input: {
56                label: 'Date',
57                name: 'example_date',
58                type: 'date',
59              },
60              grid: {
61                col: 6,
62              },
63            },
64            {
65              input: {
66                label: 'Time',
67                name: 'example_time',
68                type: 'time',
69              },
70              grid: {
71                col: 6,
72              },
73            },
74            {
75              input: {
76                label: 'Date and Time',
77                name: 'example_datetime',
78                type: 'datetime',
79              },
80            },
81          ],
82          number: [
83            {
84              input: {
85                label: 'Integer',
86                name: 'example_integer',
87                type: 'number',
88              },
89              grid: {
90                col: 6,
91              },
92            },
93            {
94              input: {
95                label: 'Big Integer',
96                name: 'example_biginteger',
97                type: 'number',
98              },
99              grid: {
100                col: 6,
101              },
102            },
103            {
104              input: {
105                label: 'Decimal',
106                name: 'example_decimal',
107                type: 'number',
108              },
109              grid: {
110                col: 6,
111              },
112            },
113            {
114              input: {
115                label: 'Float',
116                name: 'example_float',
117                type: 'number',
118              },
119              grid: {
120                col: 6,
121              },
122            },
123          ],
124          media: [
125            {
126              input: {
127                label: 'Media',
128                name: 'example_media',
129                type: 'media',
130              },
131            },
132          ],
133          select: [
134            {
135              input: {
136                label: 'Enumeration',
137                name: 'example_enum',
138                type: 'select',
139                options: [
140                  {
141                    label: 'Option Label 1',
142                    value: 'option1',
143                  },
144                  {
145                    label: 'Option Label 2',
146                    value: 'option2',
147                  },
148                  {
149                    label: 'Option Label 3',
150                    value: 'option3',
151                  },
152                ],
153              },
154            },
155            {
156              input: {
157                label: 'Relation (hasOne)',
158                name: 'example_relation_one',
159                type: 'relation',
160              },
161            },
162            {
163              input: {
164                label: 'Relation (hasMany)',
165                name: 'example_relation_many',
166                type: 'relation',
167              },
168            },
169          ],
170        },
171      },
172    },
173  },
174};

With everything configured properly, you should end up with a menu item edit panel that looks like the image below. Refer to the Supported Field Types section if you are still confused on how to enable the rich text editor.

Screenshot for 100% complete config UI for Strapi menus plugin

📘 User Guide

Create

On the menus plugin home page, use the "Create new menu" button to get started. You will need to provide a title and a unique slug value for the new menu. Saving the menu before adding menu items is recommended but not required.

Clone

Choosing to clone an existing menu will take you to the edit view as usual, but this time it will be pre-populated with another menu's data. Once the cloned menu is saved, a brand new menu and menu items are created.

Delete

Deleting a menu will also delete all of it's menu items.

Screenshot for index view of Strapi menus plugin

Edit

When clicking on a menu item in the left column, it will reveal action buttons to move the item, delete it, or give it a submenu.

The right column will reveal the edit UI for that item, where the title is the only required field.

Screenshot for edit view of Strapi menus plugin

⚡ API Usage

Fetching menus data is the same as fetching any other data using Strapi's REST API features.

Don't forget to enable the public methods for Menu and MenuItem in the Users and Permissions settings, like find and findOne.

Screenshot for public API actions

Endpoints

requestendpointdescription
GET/api/menusFetch all menus.
GET/api/menus/:idFetch one menu.
POST/api/menus/:idCreate a menu.
PUT/api/menus/:idUpdate a menu.
DELETE/api/menus/:idDelete a menu.

Params

namedescription
nestedSerialize menu items into a nested format, otherwise they are returned as a flat list.

Basic example

Fetch a menu with the ID 3. Nothing is populated by default.

1await fetch('/api/menus/3');
Response
1{
2  "data": {
3    "id": 3,
4    "attributes": {
5      "title": "Main Menu",
6      "slug": "main-menu",
7      "createdAt": "2022-07-24T01:51:19.115Z",
8      "updatedAt": "2022-07-24T01:55:16.153Z"
9    }
10  },
11  "meta": {}
12}

Example with population

Fetch a menu with the ID 3 with populate params included.

1await fetch('/api/menus/3?populate=*');
Response
1{
2  "data": {
3    "id": 3,
4    "attributes": {
5      "title": "Main Menu",
6      "slug": "main-menu",
7      "createdAt": "2022-07-24T01:51:19.115Z",
8      "updatedAt": "2022-07-24T01:55:16.153Z",
9      "items": {
10        "data": [
11          {
12            "id": 10,
13            "attributes": {
14              "order": 0,
15              "title": "Parent Page",
16              "url": "/parent-page",
17              "target": null,
18              "createdAt": "2022-07-24T03:33:03.416Z",
19              "updatedAt": "2022-07-24T19:49:38.949Z"
20            }
21          },
22          {
23            "id": 11,
24            "attributes": {
25              "order": 0,
26              "title": "Child Page",
27              "url": "/child-page",
28              "target": null,
29              "createdAt": "2022-07-24T03:33:03.416Z",
30              "updatedAt": "2022-07-24T19:49:38.949Z"
31            }
32          },
33          {
34            "id": 12,
35            "attributes": {
36              "order": 0,
37              "title": "Grandchild Page",
38              "url": "/grandchild-page",
39              "target": null,
40              "createdAt": "2022-07-24T03:33:03.416Z",
41              "updatedAt": "2022-07-24T19:49:38.949Z"
42            }
43          },
44          {
45            "id": 13,
46            "attributes": {
47              "order": 0,
48              "title": "Another Page",
49              "url": "/another-page",
50              "target": null,
51              "createdAt": "2022-07-24T03:33:03.416Z",
52              "updatedAt": "2022-07-24T19:49:38.949Z",
53              "children": []
54            }
55          }
56        ]
57      }
58    }
59  },
60  "meta": {}
61}

Example with population and nested params

Fetch a menu with the ID 3 with the nested param included.

1await fetch('/api/menus/3?nested&populate=*');
Response
1{
2  "data": {
3    "id": 3,
4    "attributes": {
5      "title": "Main Menu",
6      "slug": "main-menu",
7      "createdAt": "2022-07-24T01:51:19.115Z",
8      "updatedAt": "2022-07-24T01:55:16.153Z",
9      "items": {
10        "data": [
11          {
12            "id": 10,
13            "attributes": {
14              "order": 0,
15              "title": "Parent Page",
16              "url": "/parent-page",
17              "target": null,
18              "createdAt": "2022-07-24T03:33:03.416Z",
19              "updatedAt": "2022-07-24T19:49:38.949Z",
20              "children": [
21                {
22                  "id": 11,
23                  "attributes": {
24                    "order": 0,
25                    "title": "Child Page",
26                    "url": "/child-page",
27                    "target": null,
28                    "createdAt": "2022-07-24T03:33:03.416Z",
29                    "updatedAt": "2022-07-24T19:49:38.949Z",
30                    "children": [
31                      {
32                        "id": 12,
33                        "attributes": {
34                          "order": 0,
35                          "title": "Grandchild Page",
36                          "url": "/grandchild-page",
37                          "target": null,
38                          "createdAt": "2022-07-24T03:33:03.416Z",
39                          "updatedAt": "2022-07-24T19:49:38.949Z",
40                          "children": []
41                        }
42                      }
43                    ]
44                  }
45                }
46              ]
47            }
48          },
49          {
50            "id": 13,
51            "attributes": {
52              "order": 0,
53              "title": "Another Page",
54              "url": "/another-page",
55              "target": null,
56              "createdAt": "2022-07-24T03:33:03.416Z",
57              "updatedAt": "2022-07-24T19:49:38.949Z",
58              "children": []
59            }
60          }
61        ]
62      }
63    }
64  },
65  "meta": {}
66}

Example with nested param and custom relations populated

Custom relation fields are not populated by default. Here we fetch a menu with the ID 3 with custom relation fields populated.

The qs library is highly recommended for building the request URL for complicated population objects.

1import qs from 'qs';
2
3const params = {
4  nested: true,
5  populate: {
6    items: {
7      populate: {
8        example_relation: true,
9        another_relation: true,
10      },
11    },
12  },
13};
14
15const query = qs.stringify(params, { addQueryPrefix: true });
16
17// The params above will parse into this query string.
18// ?nested&populate[items][populate][0]=example_relation&populate[items][populate][1]=another_relation
19
20await fetch( `/api/menus/3${query}` );
Response
1{
2  "data": {
3    "id": 3,
4    "attributes": {
5      "title": "Main Menu",
6      "slug": "main-menu",
7      "createdAt": "2022-07-24T01:51:19.115Z",
8      "updatedAt": "2022-07-24T01:55:16.153Z",
9      "items": {
10        "data": [
11          {
12            "id": 10,
13            "attributes": {
14              "order": 0,
15              "title": "Parent Page",
16              "url": "/parent-page",
17              "target": null,
18              "example_relation": {
19                "id": 1,
20                "title": "Example Relation",
21              },
22              "another_relation": {
23                "id": 2,
24                "title": "Another Relation",
25              },
26              "createdAt": "2022-07-24T03:33:03.416Z",
27              "updatedAt": "2022-07-24T19:49:38.949Z",
28              "children": [
29                {
30                  "id": 11,
31                  "attributes": {
32                    "order": 0,
33                    "title": "Child Page",
34                    "url": "/child-page",
35                    "target": null,
36                    "example_relation": null,
37                    "another_relation": null,
38                    "createdAt": "2022-07-24T03:33:03.416Z",
39                    "updatedAt": "2022-07-24T19:49:38.949Z",
40                    "children": [
41                      {
42                        "id": 12,
43                        "attributes": {
44                          "order": 0,
45                          "title": "Grandchild Page",
46                          "url": "/grandchild-page",
47                          "target": null,
48                          "example_relation": null,
49                          "another_relation": null,
50                          "createdAt": "2022-07-24T03:33:03.416Z",
51                          "updatedAt": "2022-07-24T19:49:38.949Z",
52                          "children": []
53                        }
54                      }
55                    ]
56                  }
57                }
58              ]
59            }
60          },
61          {
62            "id": 13,
63            "attributes": {
64              "order": 0,
65              "title": "Another Page",
66              "url": "/another-page",
67              "target": null,
68              "example_relation": {
69                "id": 1,
70                "title": "Example Relation",
71              },
72              "another_relation": null,
73              "createdAt": "2022-07-24T03:33:03.416Z",
74              "updatedAt": "2022-07-24T19:49:38.949Z",
75              "children": []
76            }
77          }
78        ]
79      }
80    }
81  },
82  "meta": {}
83}

💩 Troubleshooting

In general

Remember to rebuild your app after making changes to some config or other code.

yarn build
# OR
yarn develop

Custom MenuItem attributes don't save or appear in the database table schema.

Custom attributes require both the form layout extension as well as the schema extension. Please make sure both of these are configured as described in the Extending section.

Some users cannot view menus, as if they do not have permissions.

Currently, this plugin does not even support RBAC (role-based access controls). If it appears as if a users does not have permissions to view menus, try to update that user's profile in Strapi or even change their password. This should kick something into place that fixes that user's permissions.

The screen goes white when I try to use the menus plugin.

Either something in your menus plugin configuration is setup incorrectly or you may have custom middlewares, plugins, or lifecycle hooks that could be interfering. Check your developer console to gain more insight into the error.

🚌 Migration

Follow the migration guides to keep your menus plugin up-to-date.

❤️ Support or Donate

If you are enjoying this plugin and feel extra appreciative, you can buy me a beer or 3 🍺🍺🍺.

🚧 Roadmap

  • Localization support.
  • RBAC support.
  • Drag and drop items.
  • Populate url via relation.
  • Restore deleted items (before saving).
  • More translations.

Install now

npm install strapi-plugin-menus

STATS

113 GitHub stars925 weekly downloads

Last updated

307 days ago

Strapi Version

4.13.1 and above

Author

github profile image for Matt Milburn
Matt Milburn

Useful links

Create your own plugin

Check out the available plugin resources that will help you to develop your plugin or provider and get it listed on the marketplace.
