PostGIS

Add native postgis support to strapi.

thumbnail for PostGIS

DocSearch

Add native postgis support to strapi.

npm Package Docs

Documentation Video

Screenshot


Under Development

How does it work?

Since Strapi does not support native database formats I convert requests before they being sent to the querybuilder and convert all the geometry objects to the geojson.

Installation

Setup your strapi app as usual

1
npx create-strapi-app@latest my-project --quickstart

Install pg and strapi-plugin-postgis

1
2
npm install pg --save
npm i strapi-plugin-postgis

Make sure to config your strapi to use postgrs database as backend, Use this link in case you need any help with this step (https://strapi.io/blog/postgre-sql-and-strapi-setup)

Make sure to install postgis on your database server.

  • This plugin is only compatible with postgis versions 3.1 and 3.2*

Modify your middlewares as following to let strapi load osm tiles. Add '*.tile.openstreetmap.org' to the img-src as follows

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
// ./config/middlewares.js
module.exports = [
  'strapi::errors',
  {
    name: 'strapi::security',
    config: {
      contentSecurityPolicy: {
        useDefaults: true,
        directives: {
          'img-src': ["'self'", 'data:', 'blob:', '*.tile.openstreetmap.org'],
          upgradeInsecureRequests: null,
        },
      },
    },
  },
  'strapi::cors',
  'strapi::poweredBy',
  'strapi::logger',
  'strapi::query',
  'strapi::body',
  'strapi::session',
  'strapi::favicon',
  'strapi::public',
];

Run strapi and you should see the following line

1
[2022-06-03 10:47:25.194] info: Welcome to Strapi Postgis 🚀 + 🐘 + 🗺️ | 3.1 USE_GEOS=1 USE_PROJ=1 USE_STATS=1

Now in your api folder modify content-types and add a new column with the following format

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
{
  "kind": "collectionType",
  .
  .
  .
  "attributes": {
  .
  .
  .
    "geom": { //--> your column name. you can change to anything
      "columnType": {
        "type": "specificType",
        "args": [
          "geometry(POINT,4326)" //-> change this line according to the Supported Data Types section
        ]
      },
      "type": "json", //->don't change this
      "fieldRenderer": "postgis" //->don't change this
    }
  }
}

Supported Data Types

POINT

Screenshot

1
2
3
4
5
6
7
8
9
10
"geom": {
      "columnType": {
        "type": "specificType",
        "args": [
          "geometry(POINT,4326)"
        ]
      },
      "type": "json",
      "fieldRenderer": "postgis"
    }
  • POINT Z (0 0 0)

  • POINT ZM (0 0 0 0)

  • POINT EMPTY

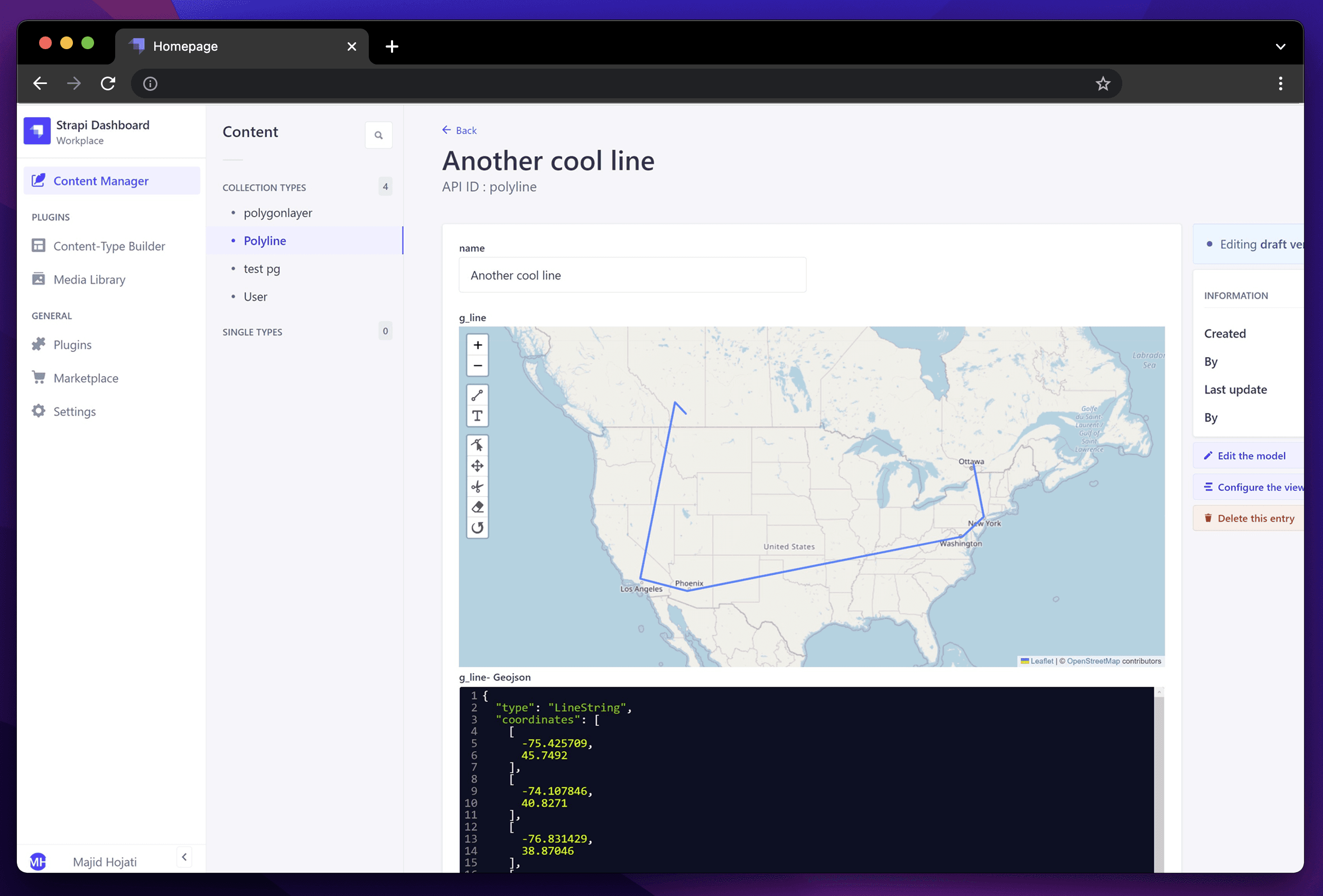

LINESTRING

Screenshot

1
2
3
4
5
6
7
8
9
10
    "g_line": {
      "columnType": {
        "type": "specificType",
        "args": [
          "geometry(LINESTRING,4326)"
        ]
      },
      "type": "json",
      "fieldRenderer": "postgis"
    }
  • LINESTRING EMPTY

POLYGON

Screenshot

1
2
3
4
5
6
7
8
9
10
    "g_polygon": {
      "columnType": {
        "type": "specificType",
        "args": [
          "geometry(POLYGON,4326)"
        ]
      },
      "type": "json",
      "fieldRenderer": "postgis"
    }
  • MULTIPOINT((0 0),(1 2))

  • MULTIPOINT Z ((0 0 0),(1 2 3))

  • MULTIPOINT EMPTY

  • MULTILINESTRING((0 0,1 1,1 2),(2 3,3 2,5 4))

  • MULTIPOLYGON(((0 0,4 0,4 4,0 4,0 0),(1 1,2 1,2 2,1 2,1 1)), ((-1 -1,-1 -2,-2 -2,-2 -1,-1 -1)))

  • GEOMETRYCOLLECTION(POINT(2 3),LINESTRING(2 3,3 4))

  • GEOMETRYCOLLECTION EMPTY

TODO

  • Add tests
  • Support all the types
  • Add query options like sort by distance, overlap and etc.
  • Develop dashboard
  • Add cool pg queries and tilings ;)

Thanks to

  • strapi-plugin-point-list for the idea of how to add a custom components to the strapi content types
  • postgis knex plugin
  • leaflet editor plugin
  • strapi team
  • and so many other stuff
