Strapi Menus

A plugin for Strapi CMS to customize the structure of menus and menu items.

Get Started

• Features
• Installation
• Configuration
• Extending
• User Guide
• API Usage
• Troubleshooting
• Support or Donate
• Roadmap
• Gallery

✨ Features

• Consumable menu data which can be used to render navigation and other menus in a frontend app.
• Easily manage menus with either a flat or nested structure.
• Customize the title, url, isProtected, and link target of menu items.
• Extend the schema and UI with custom attributes for menu items.
• Support for all Strapi field types in the UI.
• Support i18n translations for menu attributes.
• Support RBAC permissions for plugin.

💎 Installation

yarn add strapi-plugin-tree-menus@latest

Hot fix issue between vite and traverse

• Unsupported fieldtype: plugin::tree-menus.tree
• Vite 'global is not defined'

https://stackoverflow.com/questions/72114775/vite-global-is-not-defined

to fix enable global to browser:

• create vite.config.ts in [root]/src/admin

1import { mergeConfig, type UserConfig } from 'vite'
2
3export default (config: UserConfig) => {
4  // Important: always return the modified config
5  return mergeConfig(config, {
6    resolve: {
7      alias: {
8        '@': '/src',
9      },
10    },
11    optimizeDeps: {
12      esbuildOptions: {
13        // Node.js global to browser globalThis
14        define: {
15          global: 'globalThis',
16        },
17      },
18    },
19  })
20}

Don't forget to restart or rebuild your Strapi app when installing a new plugin.

🔧 Configuration

fieldSchema

The fieldSchema prop is an object that defines the schema for menu items. This is where you can add custom attributes to the MenuItem schema. The example below demonstrates how to add a custom example_field attribute to the MenuItem schema.

Example

1// ./config/plugins.js`
2'use strict'
3
4module.exports = {
5  'tree-menus': {
6    config: {
7      fieldSchema: {
8        attributes: [
9          {
10            id: 'title',
11            label: 'Title',
12            placeholder: 'Enter item title',
13            type: 'text',
14            validationType: 'string',
15            value: 'New items',
16            required: true,
17            validations: [
18              {
19                type: 'required',
20                params: ['this field is required'],
21              },
22              {
23                type: 'max',
24                params: [100, 'Title cannot be more than 100 characters'],
25              },
26              {
27                type: 'default',
28                params: ['New items'],
29              },
30            ],
31          },
32          {
33            id: 'url',
34            label: 'Url',
35            placeholder: 'Enter url',
36            type: 'text',
37            validationType: 'string',
38            value: '/',
39            required: true,
40            validations: [
41              {
42                type: 'required',
43                params: ['this field is required'],
44              },
45              {
46                type: 'max',
47                params: [200, 'Url cannot be more than 200 characters'],
48              },
49              {
50                type: 'default',
51                params: ['/'],
52              },
53            ],
54          },
55          {
56            id: 'target',
57            label: 'Target',
58            placeholder: 'Enter target',
59            type: 'select',
60            validationType: 'mixed',
61            value: '_self',
62            required: true,
63            validations: [
64              {
65                type: 'oneOf',
66                params: [
67                  ['_blank', '_parent', '_self', '_top'],
68                  'this field needs to be one of the following: _blank, _parent, _self, _top',
69                ],
70              },
71              {
72                type: 'default',
73                params: ['_self'],
74              },
75            ],
76            options: [
77              {
78                key: '_blank',
79                value: '_blank',
80                metadatas: {
81                  intlLabel: {
82                    id: 'tree-menus.target.options._blank',
83                    defaultMessage: 'New window (_blank)',
84                  },
85                  disabled: false,
86                  hidden: false,
87                },
88              },
89              {
90                key: '_parent',
91                value: '_parent',
92                metadatas: {
93                  intlLabel: {
94                    id: 'tree-menus.target.options._parent',
95                    defaultMessage: 'Parent window (_parent)',
96                  },
97                  disabled: false,
98                  hidden: false,
99                },
100              },
101              {
102                key: '_self',
103                value: '_self',
104                metadatas: {
105                  intlLabel: {
106                    id: 'tree-menus.target.options._self',
107                    defaultMessage: 'Same window (_self)',
108                  },
109                  disabled: false,
110                  hidden: false,
111                },
112              },
113              {
114                key: '_top',
115                value: '_top',
116                metadatas: {
117                  intlLabel: {
118                    id: 'tree-menus.target.options._top',
119                    defaultMessage: 'Top window (_top)',
120                  },
121                  disabled: false,
122                  hidden: false,
123                },
124              },
125            ],
126          },
127          {
128            id: 'isProtected',
129            label: 'isProtected',
130            placeholder: 'Choose isProtected',
131            type: 'bool',
132            validationType: 'boolean',
133            value: false,
134            required: true,
135            validations: [
136              {
137                type: 'required',
138                params: ['Need to choose isProtected'],
139              },
140              {
141                type: 'default',
142                params: [false],
143              },
144            ],
145          },
146        ],
147      },
148    },
149  },
150}

Enable menus in Documentation plugin

Default Strapi documentation included the tree-menus documentation.

Supported field types

The following field types in the table below are supported. Some fields use a different type value for the schema and input type.

The following field types are NOT supported:

• Component
• Dynamic Zone
• UID
• JSON

NOTE: By default, rich text fields are not supported unless a custom plugin overrides the core WYSIWYG editor, which is covered in the Strapi guide to creating a new WYSIWYG field in the admin panel.

📘 User Guide

Create

On the menus plugin home page, use the "Create new menu" button to get started. You will need to provide a title and a unique slug value for the new menu. Saving the menu before adding menu items is recommended but not required.

Clone

Choosing to clone an existing menu will take you to the edit view as usual, but this time it will be pre-populated with another menu's data. Once the cloned menu is saved, a brand new menu and menu items are created.

Delete

Deleting a menu will also delete all of it's menu items.

Edit

When clicking on a menu item in the left column, it will reveal action buttons to move the item, delete it, or give it a submenu.

The right column will reveal the edit UI for that item, where the title is the only required field.

⚡ API Usage

Fetching menus data is the same as fetching any other data using Strapi's REST API features.

Don't forget to enable the public methods for Menu and MenuItem in the Users and Permissions settings, like find and findOne.

Endpoints

Basic example

Fetch a menu with the documentId. Nothing is populated by default.

1await fetch('/api/tree-menus/menu/${documentId}')

Response

1{
2  "data": {
3    "id": 1,
4    "documentId": "jke4feqw23h1",
5    "title": "Main Menu",
6    "slug": "main-menu",
7    "items": [
8      {
9        "id": "1",
10        "title": "Home",
11        "url": "/",
12        "target": "_self",
13        "isProtected": false,
14        "children": []
15      },
16      {
17        "id": "2",
18        "title": "About",
19        "url": "/about",
20        "target": "_self",
21        "isProtected": false,
22        "children": [
23          {
24            "id": "2.1",
25            "title": "Our Team",
26            "url": "/about/our-team",
27            "target": "_self",
28            "isProtected": false,
29            "children": []
30          },
31          {
32            "id": "2.2",
33            "title": "Our Mission",
34            "url": "/about/our-mission",
35            "target": "_self",
36            "isProtected": false,
37            "children": []
38          }
39        ]
40      }
41    ],
42    "createdAt": "2024-10-07T08:00:00.000Z",
43    "updatedAt": "2024-10-07T08:00:00.000Z",
44    "publishedAt": "2024-10-07T08:00:00.000Z"
45  },
46  "meta": {}
47}

💩 Troubleshooting

In general

Remember to rebuild your app after making changes to some config or other code.

yarn build
# OR
yarn develop

Custom MenuItem attributes save in the schema or config.

If you are having trouble saving custom attributes in the MenuItem schema, make sure that the fieldSchema object is properly configured in the config/plugins.js file. fieldSchema only supports the following field types: string, text, number, bool, select, date, time, datetime, email.

I can't see config fieldSchema in the Strapi admin panel.

❤️ Support or Donate

If you are enjoying this plugin and feel extra appreciative, you can buy me a beer or 3 🍺🍺🍺.

🚧 Roadmap

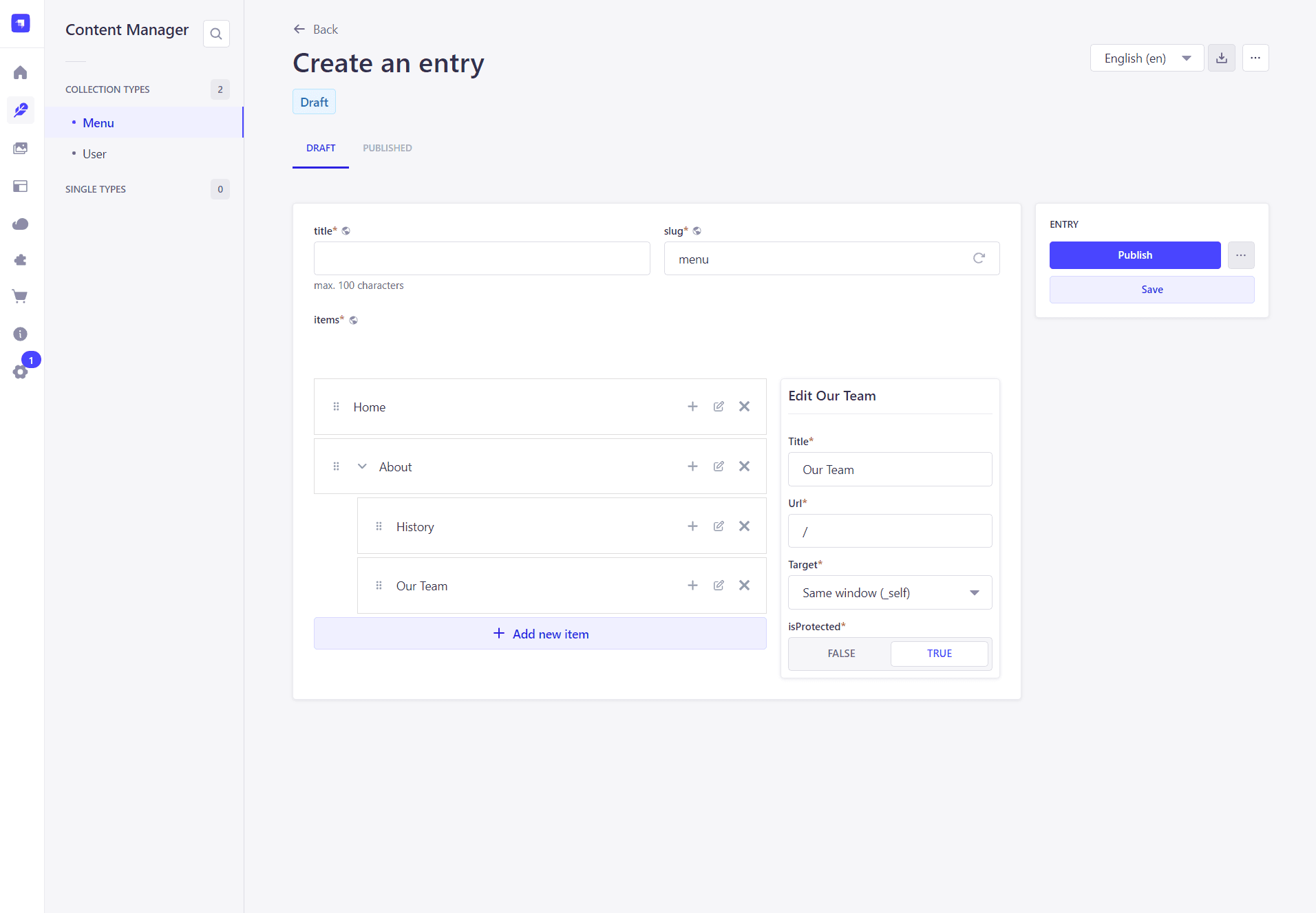

📸 Gallery
